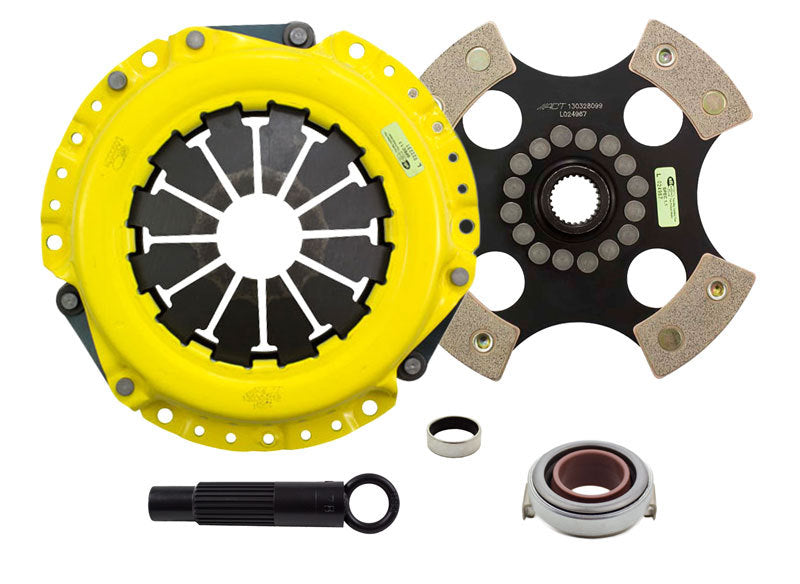

ACT Heavy Duty Race Pressure Plate with Rigid 4 Pad Clutch Kit (unsprung) for 02-06 RSX Type-S | 06-11 Civic Si

ACT Heavy Duty Race Pressure Plate with Rigid 4 Pad Clutch Kit (unsprung) for 02-06 RSX Type-S | 06-11 Civic Si

Regular price $450.00 USD
Regular price Sale price $450.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

Part number: AR1-HDR4

2002-2006 Acura RSX Type-S

2006-2011 Honda Civic Si

For the application above with 6-speed transmission and flywheel.

If you want to use this item on the model that come with 5-speed transmission and flywheel, you will need to swap your flywheel to the 6-speed flywheel.

Pressure Plate Type: Heavy Duty/Race Rigid 4 Pad
Disc Type: Race Rigid 4 Pad
Product Weight (lbs.) 9.9
Torque Capacity (ft/lbs.) 330
Torque Capacity Over OE 73%
Disc Material Ceramic
Clutch Disc Diameter (Inches) 8.4
Clutch Disc Diameter (Millimeters) 214
Input Shaft Diameter (inches) 1.03125
Pressure Plate Type Heavy Duty

ACT's AR1-HDR4 kit features a Heavy Duty pressure plate with a diaphragm design for increased clamp load and long life. Precision stampings ensure rigidity. 4-pad rigid race discs are made from ceramics with a heat-treated chrome-moly hub. Quicker shifts and smooth operation come from the lightweight, rigid design. Engagement is harsher, but shifting is faster with the 4-pad rigid race disc, ideal for smaller engines.

Pedal Feel - Light to moderate pedal effort, aggressive engagement, increased gear  rattle

Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear

Recommended for race use only

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
