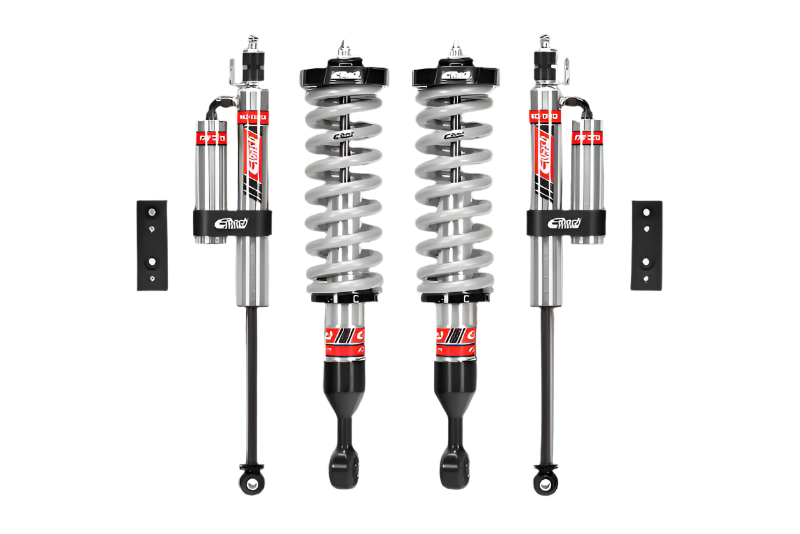

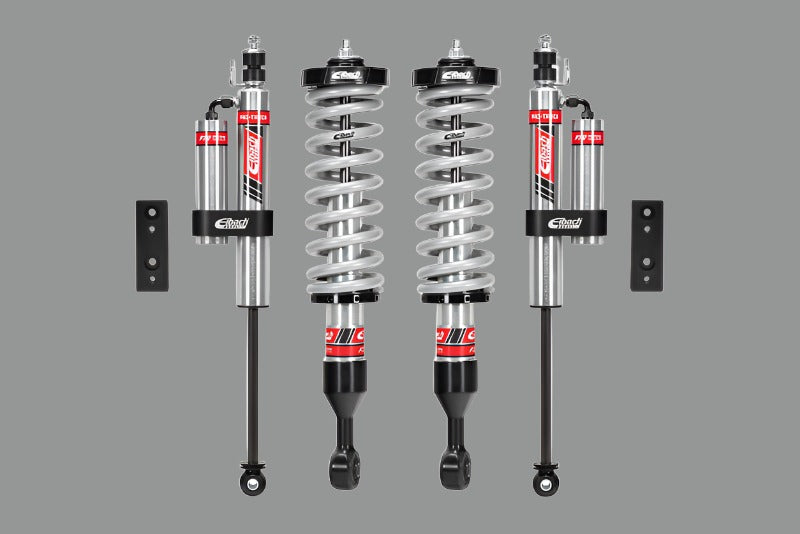

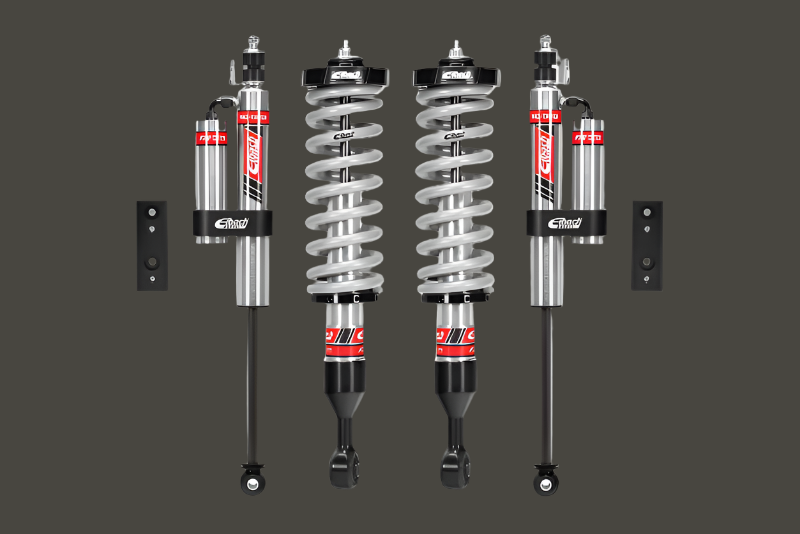

Eibach Pro-Truck Lift Coilovers Stage 2R (Front Coilovers + Rear Shocks) for 16-22 Toyota Tacoma 2WD/4WD

The Eibach's PRO-TRUCK-LIFT STAGE 2R for 2016-2022 Toyota Tacoma Pro Truck Coilovers for the front and shocks with external reservoir for the rear.  This kit allow fine tuning of ride height, offering maximum off-road capability.

Important Note

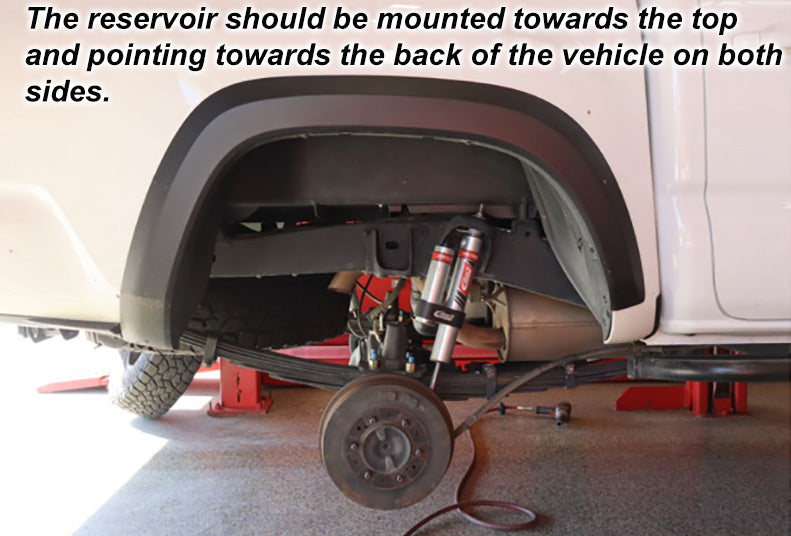

The reservoir should be mounted towards the top and pointing towards the back of the vehicle on both sides.

The driver and passenger shocks will have a different locating tab to orient the reservoir away from the frame. The locating tabs will be marked with a “D” or “P” to notate with side they belong on. The part number stamped on the shocks will also be marked. Failure to put the shocks on the correct side will cause issues fitting them to the vehicle and damage to your shock.

Features and Specifications

Anodized 6061-T6 Billet Aluminum Coilover Mounts

46mm Piston

Monotube Design with Nitrogen Filled Variable Force Valving.

Testing

Individually Dyno Tested for Matched Performance and Reliability.

Heavy Duty Bushing System also Cycle Tested.

Engineered, Tested and Manufactured by Eibach in the U.S.A.

Warranty

Limited Lifetime Warranty

Eibach's Limited Lifetime Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1-3) trucks under normal use and operating conditions.

Instructions

D3985

D3714

D3855

This Part Fits:
