Tein EDFC Motor Extension Kit M12 (No Cancellations)

Tein EDFC Motor Extension Kit M12

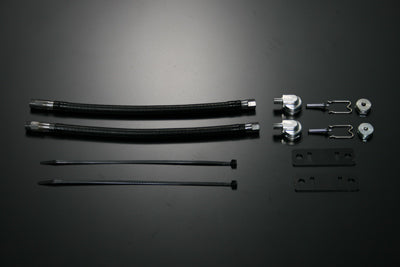

Extension Assembly x 2, Motor Bracket x 2, Cable Tie x 2 & Instruction Manual

Special order Item, not returnable.

Extension is 300mm in length and rotates freely, making it possible to put Motor at more flexible location than ever. Do NOT bend the extension shaft beyond the bending angle of R240mm. If bent further, Motor might operate unstably and/or malfunction.

■Easy Installation

Installation process can be done with the shock absorber fitted onto the vehicle. Remove damping force adjustment knob and hex bolt then attach the extension kit. That is all there is to it. No special skill nor tool is required.

■Exclusive Motor Bracket

Specially-designed motor bracket included in the kit makes it easy to anchor the Motor to the vehicle. Cable ties for anchoring motors to the bracket are also included in the kit. *Please use general-purpose bolts etc (NOT included) to mount the motor bracket to the vehicle body. *Attaching the Motor to the vehicle body panel etc. might cause the motor operating sound to amplify and/or reverberate inside the vehicle.

[ CAUTION!! ] (1)Check if piston rod top is threaded all the way to the end. If the end has non-threaded part, Motor Extension Kit can not be attached. Please refer to the diagrams below. (2)Measure the protruding part of piston rod, the length between the edge of nut to the tip of rod, as shown below. This length needs to be more than 7mm. (3)NOT compatible with MONO FLEX, COMFORT SPORT, COMFORT FLEX, SUPER RACING, MONO SPORT. (4)NOT compatible with Shock Absorbers with S.L.C. (Side Layout Click).

For more informations, please check Manufacturer's descriptions here
