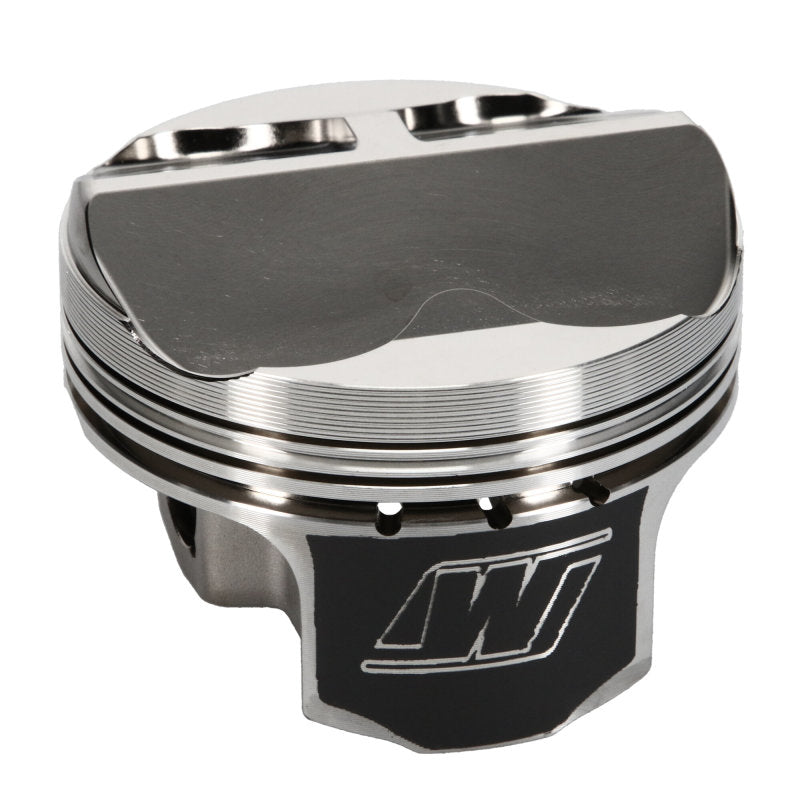

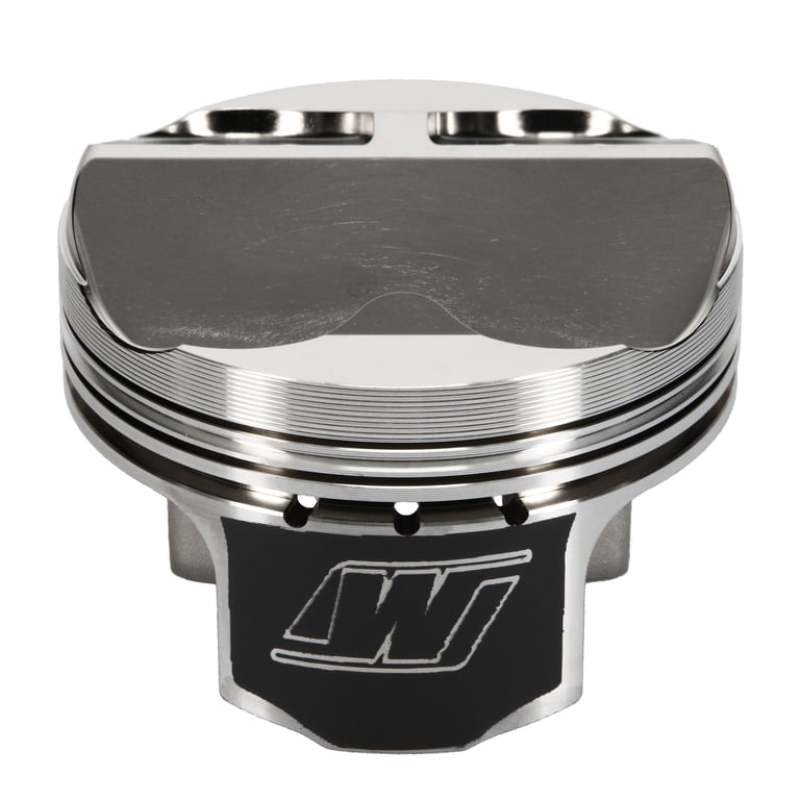

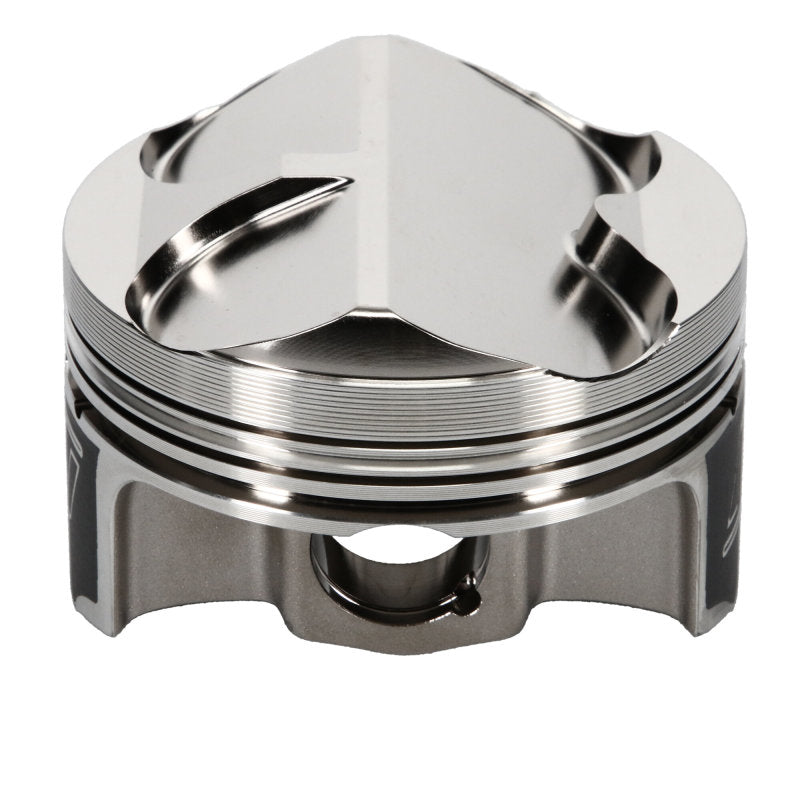

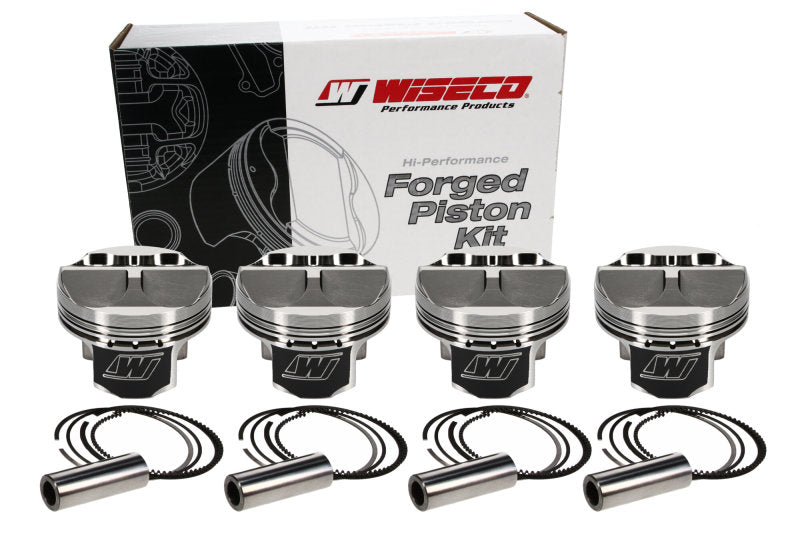

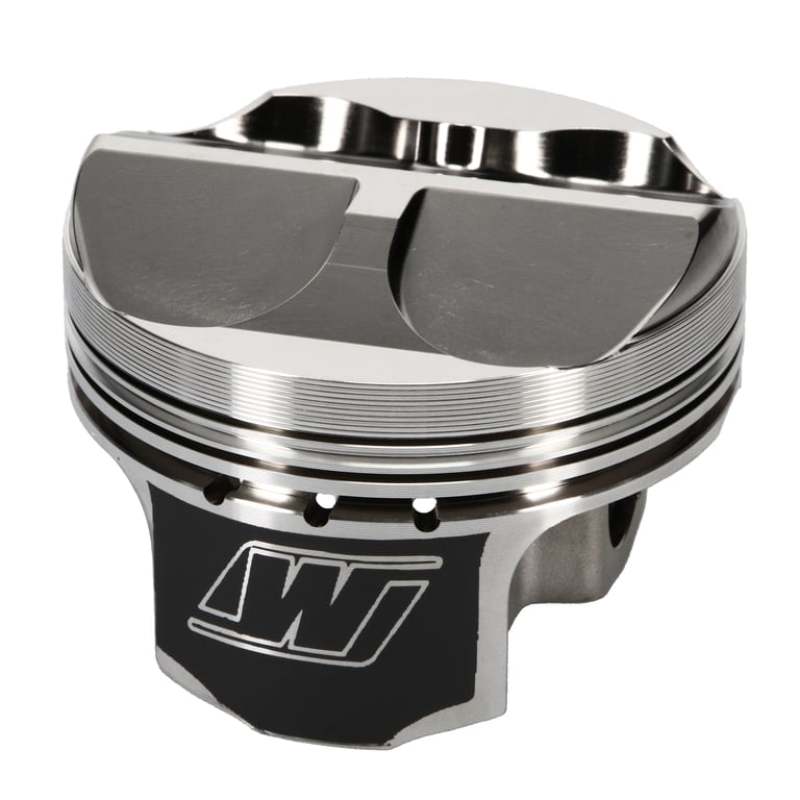

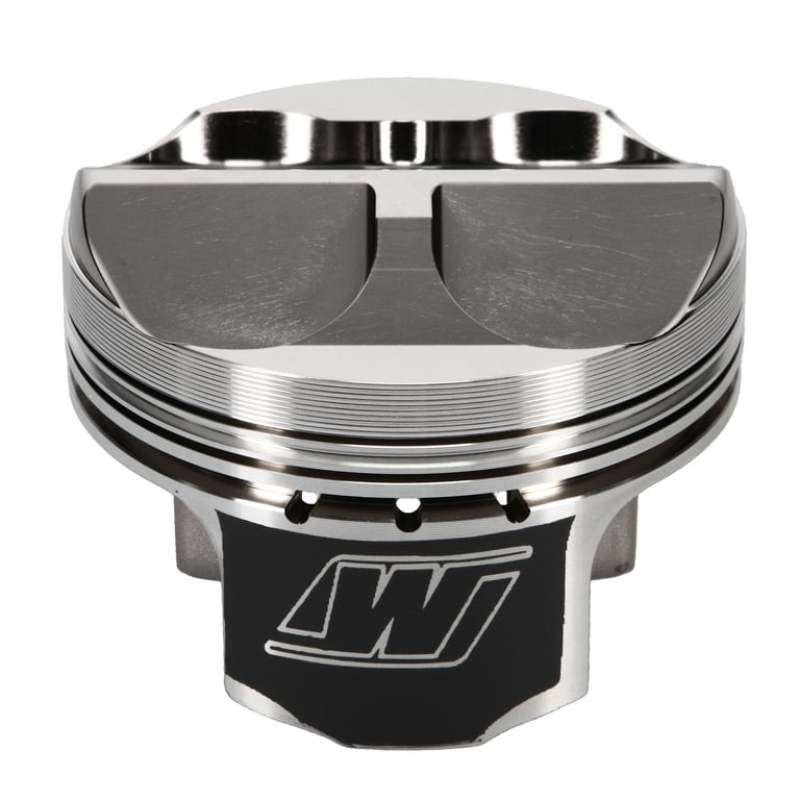

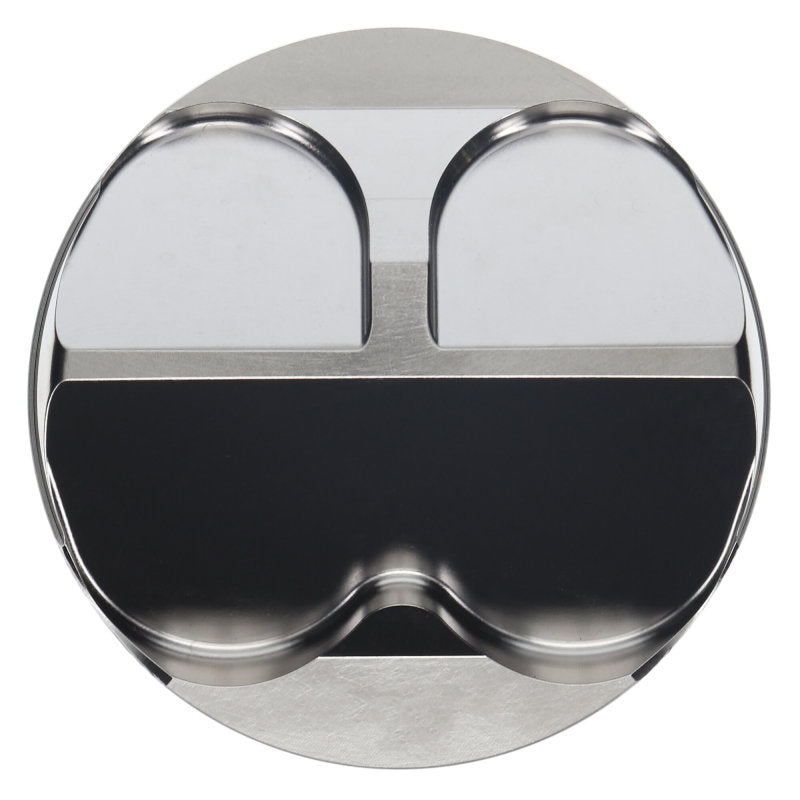

Wiseco K20A/K24 87.50mm 14.5:1 CR Pistons
Wiseco K20A/K24 87.50mm 14.5:1 CR Pistons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sign up to be the first to know when it's here
Have a Question?
Customer also asked
Manufactured in the United States from 2618 aluminum to enhance tensile strength, these pistons are engineered, forged, and machined. The ArmorGlide® Skirt Coating provides resistance against seizure, reduced friction, and quiet operation. The crown is completely machined and includes precision ring grooves, anti-detonation grooves, and additional features to improve ring seal. Additionally, these pistons have forced pin oiling to withstand heavy to severe duty performance applications.
Specifications
Bore Diameter
87.50 MM
Compression Height
30.00 MM
Piston Volume
10.50 CC
Piston Material
2618
Skirt Coating
Yes
Forging Type
Strutted
Piston Quantity
4
Ring Set Included
Yes
Top Compression Ring Thickness
1.0 MM
Second Compression Ring Thickness
1.2 MM
Oil Ring Thickness
2.8 MM
Wrist Pin Included
Yes
Wrist Pin Material
5115
Wrist Pin Outer Diameter
0.866 IN
