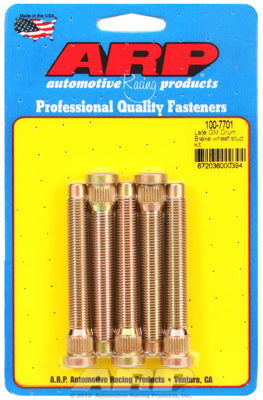

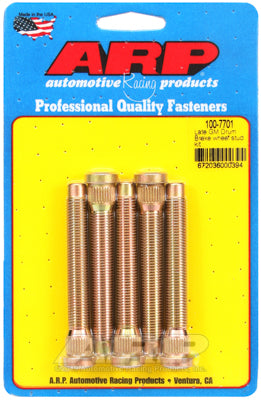

100-7701 | ARP Late Model GM Drum Brake Heat Treated 8740 Chromoly Steel 5 Pc Wheel Stud Kit
100-7701 | ARP Late Model GM Drum Brake Heat Treated 8740 Chromoly Steel 5 Pc Wheel Stud Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sign up to be the first to know when it's here
Have a Question?
Customer also asked
5pcs/set
Late GM drum brake
Specifications
Knurl Diameter : 0.486˝
UHL : 3.165˝
Knurl Length : 0.420˝
Nose Length : 0.308˝
Diameter - Thread Pitch : 7/16-20
Cast Iron/Steel Hub Drill Bit Size (actual dim.) 12mm (0.472˝)
Wheel Stud Hole Size - Aluminum Hub 0.470˝ - 0.476˝
Aluminum Hub Drill Bit Size (actual dim.) 12mm (0.472˝)
Stud Material: Chromoly steel
Proposition 65 Warnings.
Cancer and Reproductive Harm. See details below.
Items that are not CARB Legal will not be sold and ship to California or CARB states.
