Hybrid Racing K-Series Swap Air Conditioning Line Kit (96-00 Civic)

Part number: HYB-ACK-01-10

For 96-00 Civic

The Hybrid Racing K Swap AC kit allows you to retain AC when installing a K-series engine into your EG Honda Civic or Del Sol. This kit is designed to work with a compressor from a K20A, A2, A3 or K20Z1 engine. It works with the K24 engine, but you must use one of the compressors listed above!

The Hybrid Racing AC Kit is manufactured by a registered QS-9000/ISO 9002 company that has provided aluminum and steel tube assemblies to Japanese, American and European automakers since 1976. Each Kit is bent, crimped and brazed utilizing precise measurements and requirements provided by Hybrid Racing.

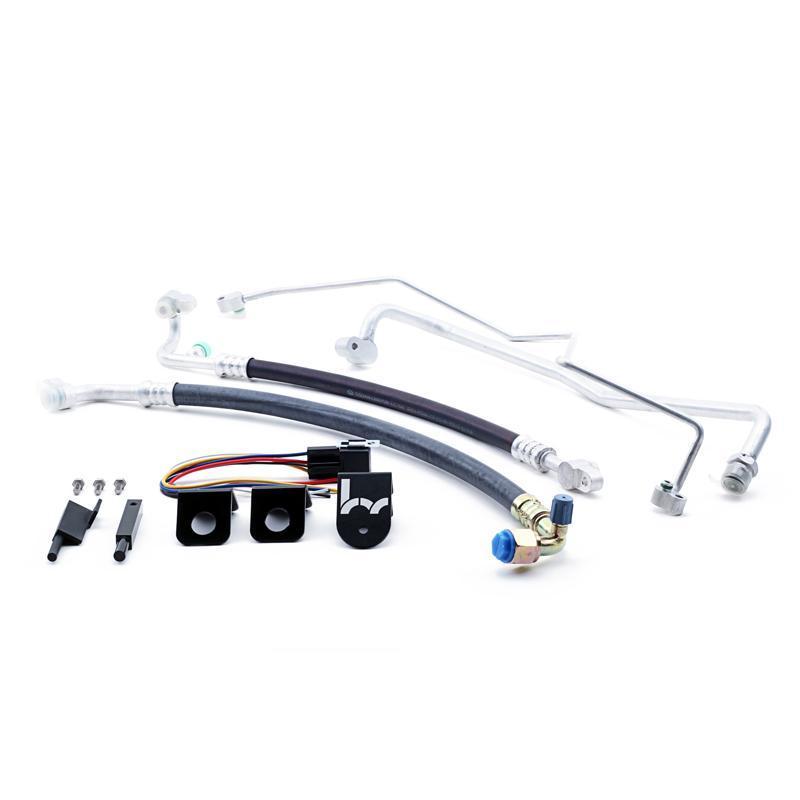

The AC kit comes with 4 custom AC lines, 1 upper mounting bracket, 2 lower condenser brackets used to mount the AC condenser and all necessary wiring and O-rings. (L Brackets not included)

You will need to keep 3 of your OEM lines as outlined in the install guide, You will need a condenser from a 96-00 Civic, the pressure switch from your stock Civic condenser and the mounting bushings from your OEM condenser. You will also need to purchase a High-performance Slim Fan.

You will need to hook up the compressor, fan and pressure switch for the compressor to kick on and off. The instructions cover this in detail for an easy installation.

You will use a 96-00 Civic condenser.

If you do not plan on keeping power steering you will need to purchase a K20A3 02-05 Civic Si K20A3 pulley setup and belt. If you plan on running PS you can use a stock K20A/A2/Z1 belt.
